350W三合一光束灯

350W三合一光束灯

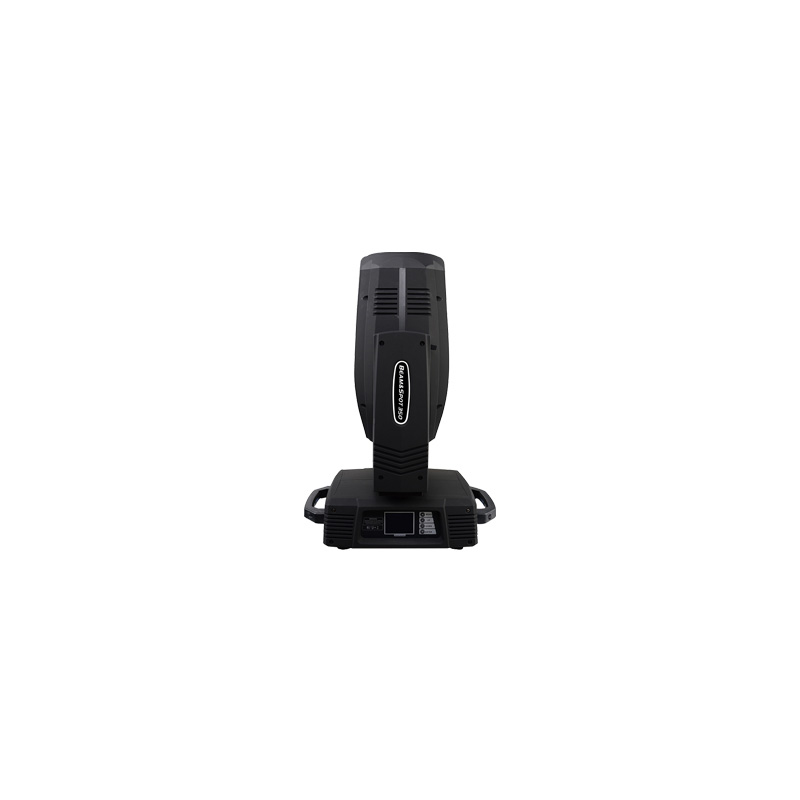

350W Beam Spot Wash

Moving Head Light

技术参数：

电压：AC100V-240V,50/60Hz

镇流器：电子镇流器

DMX 通道数：16/24通道

操作模式：DMX512模式,自走模式等

LED液晶触摸屏+按键控制,中英文模式，显示板智能化翻

转功能.

优灯350W灯泡

XY轴电机，超静音,超高速三相电机

色温8000K,平均寿命2000小时

13种颜色+白光,半色效果

14种固定图案+白光

9个可更换旋转玻璃立体图案+白光

任意二种棱镜效果且可叠合组合棱镜动态效果,可正反向

旋转切换效果

光学镜头: 高精度胶合光学镜头组合

调焦：线性调焦

变焦：线性变焦

调光：0-100%线性调节

光束角度：2°-38°

频闪：双片式频闪(0.5-9次/秒)

马达数量共16个超静音马达,二个三相马达，16bit

外观：耐高温合金塑料

防护等级：IP20

灯体尺寸：361×301×602mm

包装尺寸：480×480×590mm（1台/包）

净重：18.6kg

毛重：20kg

Technical Specificions:

Voltage: AC100V-240V, 50 / 60Hz

Ballast: electronic ballast

DMX channels: 16/24 channels

Operation mode: DMX512 mode, self-propelled mode, etc.

LED LCD touch screen + key control, Chinese and English mode,

Display board intelligent flip function.

Youdeng 350w bulb

XY axis motor, ultra-quiet, ultra-high-speed three-phase motor

Color temperature 8000K, average life 2000 hours

13 colors + white light, half-color effect

14 fixed patterns + white light

9 interchangeable rotating glass stereo patterns + white light

Any two kinds of prism effects and can be combined to combine

prism dynamic effects,

The effect can be switched forward and backward

Optical lens: high precision glued optical lens combination

Focus: linear focus

Zoom: linear zoom

Dimming: 0-100% linear adjustment

Beam angle: 2°-38 °

Strobe: dual chip strobe (0.5-9 times / second)

Total number of motors: 16 ultra-quiet motors, two three-phase

motors, 16bit

Appearance: high temperature resistant alloy plastic

Protection class: IP20

Body size: 361 × 301 × 602mm

Packing size: 480 × 480 × 590mm (1 set / pack)

N.W: 18.6kg

G.W: 20kg
